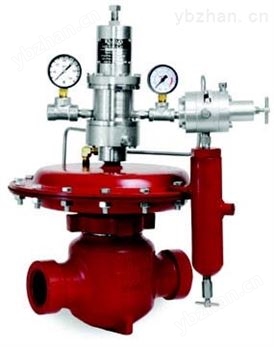

500系列減壓調節器

返回列表頁

參考價

面議

具體成交價以合同協議為準

產品型號

品牌

廠商性質其他

所在地

在線詢價收藏產品

聯系方式：銷售查看聯系方式

更新時間：2021-11-26 11:07:32瀏覽次數：328次

聯系我時，請告知來自儀表網

產品分類 品牌分類

暫無信息

天津金鐳科技有限公司

經營模式：其他

商鋪產品：31條

所在地區：天津天津市

聯系人：銷售

詢價 給他留言

產品簡介

APPLICATIONS:Regulationofinletpressuretogascompressors

詳細介紹

APPLICATIONS:
Regulation of inlet pressure to gas compressors. Control of
supply or distribution system pressures.
PRESSURE RANGE:
Upstream: 50 psig to 500 psig
Downstream: 50 psig to 500 psig
PILOT SUPPLY PRESSURE:
40 psig
NOTE:
For upstream pressure less than 50 psig use outside source
of supply to operate MOTOR VALVE DIAPHRAGM.
OPERATION:
The Pilot assembly and Motor Valve Stem Assembly
(Crosshatched) are the only moving units in the regulator. The
PILOT PLUG consists of two stainless balls rigidly connected
together. The upper seat for the PILOT PLUG is the Motor Valve
Diaphragm Pressure inlet (Violet to Yellow). The lower seat for
the PILOT PLUG is the pressure vent (Yellow to Atmosphere).
The Pilot Supply Pressure (Violet) leads the MOTOR VALVE
DIAPHRAGM to provide the closing force for the Motor Valve
against the Upstream Pressure.
The PILOT SPRING in the bonnet loads the upper side of the
Pilot Assembly and is opposed in the under side by Downstream
Pressure (Blue) in the BELLOWS ASSEMBLY. Assume the
PILOT SPRING is compressed with the ADJUSTING SCREW for
a set pressure greater than the Downstream Pressure (Blue) in
the BELLOWS ASSEMBLY. The Pilot Assembly is forced downward
by the PILOT SPRING. The lower seat for the PILOT
PLUG (Yellow to Atmosphere) is closed and the upper seat for
the PILOT PLUG (Violet to Yellow) is open. This allows Pilot
Supply Pressure (Violet) to load the underneath side of the
MOTOR VALVE DIAPHRAGM to balance the pressure on the top
side. Upstream Pressure (Red) acting under the motor valve
seat, opens the valve.
As Downstream Pressure (Blue) increases to the set pressure,
the BELLOWS ASSEMBLY expands upward, compressing
the PILOT SPRING and first closing the upper seat (Violet to
Yellow) and then opening the pressure vent (Yellow to
Atmosphere). As the MOTOR VALVE DIAPHRAGM PRESSURE
(Yellow) is decreased, the PILOT SUPPLY PRESSURE acting on
top of the Motor Valve Diaphragm begins to close the valve.
With increase of Downstream Pressure (Blue) to the set pressure,
the Pilot Assembly assumes a position in which both seats
of the PILOT PLUG are closed.
The intermittent bleed pilot, three-way valve action of the
PILOT PLUG against its seats adjusts the Motor Valve
Stem Assembly to accommodate any flow rate. The rapid
but stable repositioning produces a true throttling action.

貨號	連接尺寸	連接方式	描述	操作壓力	工作壓力	維修包
A0304	2"	SCRD	250 SGT PR-S	500	500	R0109
A0305	2"	FLGD	250 FGT PR-S	500	500	R0109
A03041	2"	SCRD	250 SGT-PR-STL	500	500	R0109
A03051	2"	FLGD	250 SGT-PR-STL	500	500	R0109
