| 測量原理 | 熱電阻溫度計 |
| 特點/應用 | metric style

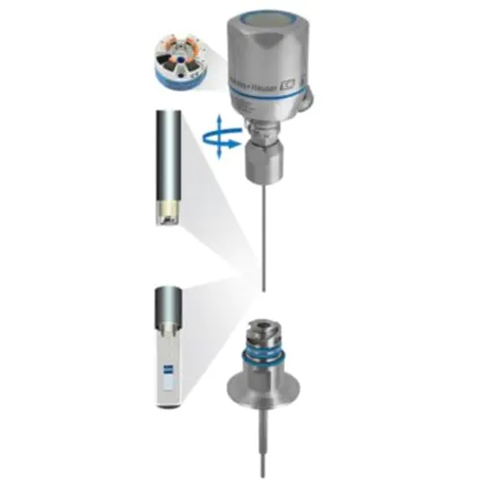

modular temperature assembly
hygienic/aseptic design (3-A®, EHEDG, ASME BPE, FDA)
hygienic process connections
with neck
suitable for hazardous areas
incl. protection tube
QuickSens for fastest response time
StrongSens for most robust design
QuickNeck for easy and cost saving recalibration
|
| 接線盒 | TA30A - E+H, aluminium - cover low, hinged - w. or w/o. display
TA30D - E+H, aluminium - cover high, hinged
TA30R - stainless steel blasted - screwed cover - w. or w/o. display
TA30R - stainless steel handpolished - screwed cover - w. or w/o. display
TA30S - polypropylene - screwed cover
TA30P - polyamide - cover high, hinged
|
| 熱保護套管 | welded protection tube
without protection tube
T- and cornerpiece
|
| 鎧裝芯子/探頭 | mineral insulated (MI), flexible
pipe version, isolated wires, not flexible
|
| 熱保護套管外徑 | 6,0 mm (0,24")
9,0 mm (0,35")
12,7 mm (0,5")
|
| 熱保護套管材質 | 1.4435 delta-ferrit < 1%
316L
|
| 過程連接 | compression fitting
weld in adapter
clamp connections acc. to ISO2852
screwed pipe joint acc. to DIN 11851
aseptic screwed pipe joint acc. to DIN 11864-1
metallic sealing system
thread acc. to ISO 228 for liquiphant adaptor
APV Inline
Varivent
Ingold
SMS 1147
Neumo Biocontrol
T- and corner pieces
|
| 熱保護套管末端類型 | straight
reduced
tapered
|
| 表面光潔度Ra | 0,76 μm (29,92 μin)
0,38 μm (14,96 μin)
0,38 μm (14,96 μin) electropolished
|
| 工作溫度范圍 | PT100:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
StrongSens:
-50 °C … 500 °C
(-58 °F … 932 °F)
QuickSens:
-50 °C … 200 °C
(-58 °F … 392 °F)
|
| **過程壓力（靜壓） | at 20 °C: 40 bar (580 psi)
|
| 測量精度 | class A acc. to IEC 60751
class AA acc. to IEC 60751
|
| 響應時間 | depending on configuration
QuickSens: t90 = 1,5 s
StrongSens: t90 = 9,5 s
|
| 模塊化溫度變送器 | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
|
| 防爆認證 | ATEX II
ATEX IECEx
FM
CSA
NEPSI
CRN
|
| 證書 | SIL (transmitter only) |
